An industrial control panel is the core of a facility’s electrical system, managing the machinery, processes, and safety functions that keep operations running smoothly. While advanced components and automation software are important, the real foundation of panel performance lies in how it is wired.
Proper control panel wiring – including wiring methods, ferrules, wire numbering, and colour coding – ensures the system operates efficiently, safely, and with minimal downtime.
At Keltour, we have decades of experience designing, building, and servicing industrial control panels for a wide range of industries. Our expertise ensures that every panel we produce uses precise wiring methods, correctly applied ferrules, clear wire numbering, and standardized colour codes.
By focusing on these critical details, we help clients achieve safer operation, faster troubleshooting, and long-term reliability in their electrical systems.
In this blog post, we explore how proper wiring methods, ferrules, numbering, colour coding, and labelling in an industrial control panel improve safety, reliability, and maintenance efficiency.
The Importance of Proper Wiring Methods in Industrial Control Panels
Wiring methods in control panels are more than just about making connections. The way wires are routed, bundled, and secured impacts the system’s reliability, safety, and ease of troubleshooting. Proper wiring methods help:
- Reduce risk of faults by minimizing exposure to vibration, moisture, and sharp edges that can damage insulation.
- Improve airflow inside the panel, reducing heat buildup around sensitive electronics.
- Simplify maintenance by creating an organized layout that technicians can navigate quickly.
Poor wiring methods can lead to increased downtime, unsafe conditions, and costly repairs. For example, using cables of incorrect gauge, failing to secure wires properly, or mixing high-voltage and low-voltage wiring without proper separation can cause interference, overheating, or even electrical fires.
Industry best practices, such as those outlined by the National Electrical Code (NEC) and IEC standards, ensure that wires are routed logically, adequately supported, and separated according to voltage and function. Adhering to these guidelines is an investment in long-term panel performance.
The Benefits of Ferrules in Wiring
A small yet critical detail in control panel wiring is the use of ferrules. The benefits of ferrules in wiring go far beyond aesthetics. Ferrules are metal sleeves crimped onto the ends of stranded wires, creating a secure and reliable connection point. Their advantages include:
- Preventing frayed strands from spreading when wires are inserted into terminals.
- Improving electrical conductivity by ensuring a tight, consistent contact surface.
- Reducing mechanical wear on wire ends during installation and future servicing.
- Allowing for repeated connections without damaging the conductor.
In high-vibration environments, ferrules help maintain secure terminations and reduce the chance of loose connections, which are a leading cause of equipment failure. When used consistently, ferrules contribute to a neater, more professional panel build and make compliance inspections smoother.
Wire Numbering Best Practices
A big time-saver when servicing an industrial control panel is clear wire identification. Wire numbering best practices ensure that every wire can be traced quickly from origin to destination. This reduces troubleshooting time, minimizes wiring errors, and supports compliance with industrial panel labelling standards.
Best practices include:
- Consistent numbering systems that match panel schematics.
- Durable labels that resist heat, oil, and chemical exposure.
- Placement at both ends of each wire for quick identification from either side.

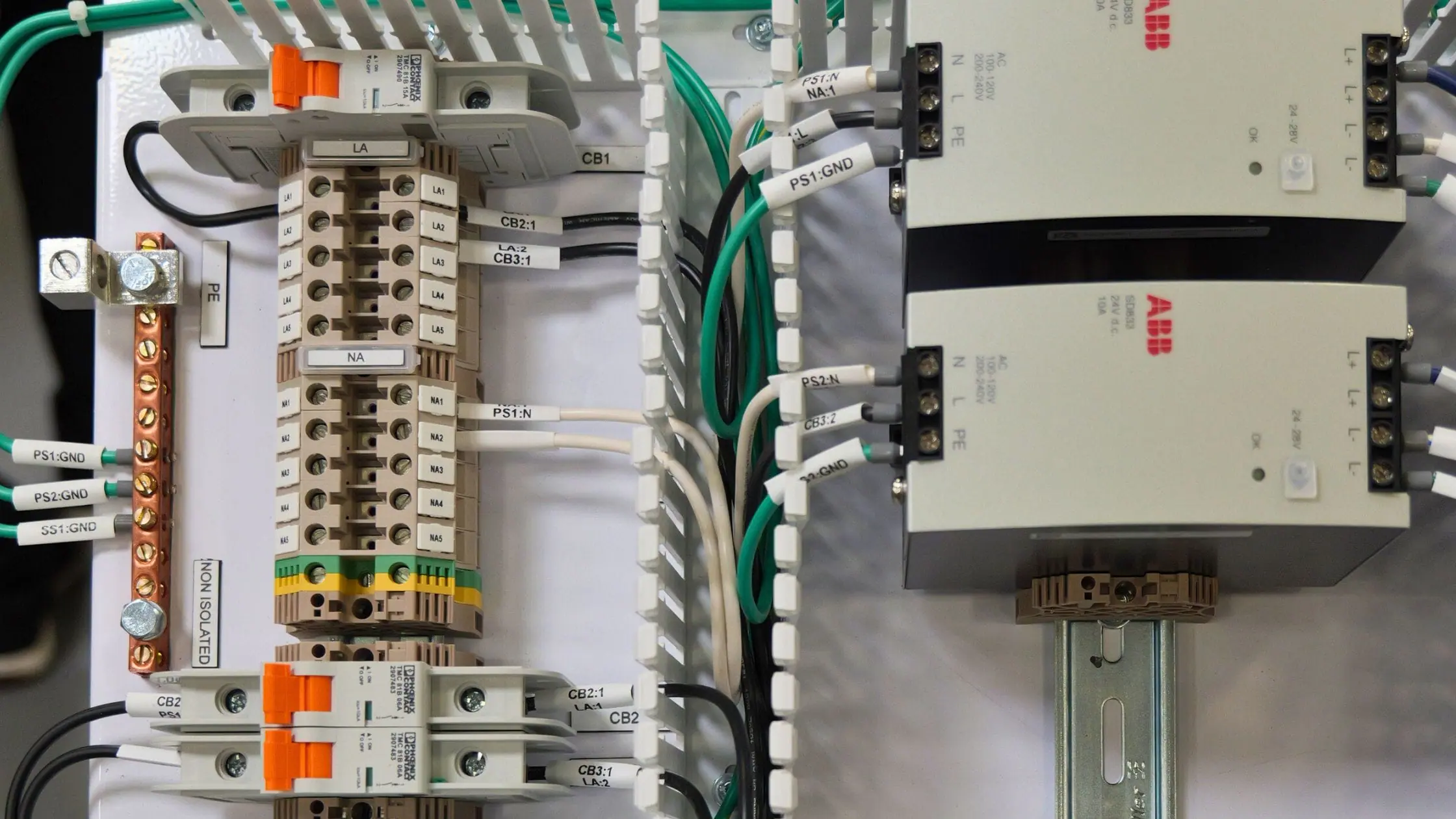

Keltour uses automated wire-marking machines to print identification codes directly on heat-shrink sleeves or adhesive labels. This approach produces clear, permanent markings that remain legible for the lifetime of the panel.
The Role of Colour Coding in Electrical Panels
Colour coding in electrical panels is an essential visual guide for technicians, inspectors, and maintenance teams. It ensures that anyone working on the system can immediately recognize wire function, voltage level, and safety hazards.
Typical colour coding systems might include:
- Black, red, and blue for AC power conductors.
- White or grey for neutral conductors.
- Green or green/yellow for protective earth (ground) connections.
- Orange or purple for specific control circuits.
In global operations, colour codes must comply with regional standards, such as the Canadian Electrical Code (CEC) or IEC guidelines, to maintain safety and consistency across facilities. Colour coding reduces human error and speeds up installation and maintenance by providing a universal visual reference.
Industrial Panel Labelling Standards and Compliance
Labelling is more than just identifying wires. Industrial panel labelling standards extend to devices, terminal blocks, relays, circuit breakers, and other components inside the panel. A well-labelled panel aligns with safety codes, facilitates faster training of new technicians, and reduces costly mistakes during servicing.
Common labelling requirements include:
- Component identification that matches engineering drawings.
- Clear, legible fonts resistant to fading or smudging.
- Labels positioned for visibility without requiring disassembly.
Compliance with standards such as UL 508A or CSA C22.2 ensures not only safety but also smoother certification processes for panels intended for export or integration into regulated industries.
How These Practices Improve Efficiency and Safety
A cleanly wired, well-labelled, and colour-coded control panel wiring system offers clear operational advantages:
- Reduced downtime during troubleshooting, as technicians can trace faults quickly.
- Improved safety by minimizing the risk of accidental contact with live circuits or incorrect connections.
- Easier modifications when adding new devices or upgrading existing systems.
- Enhanced reliability through secure terminations, proper cable management, and adherence to standards.
In industries where every hour of downtime can cost thousands of dollars, the upfront investment in proper wiring methods, ferrules, and labelling pays off rapidly.
Choosing the Right Partner for Industrial Control Panel Wiring
Designing and building an industrial control panel that meets modern performance and safety standards requires expertise.
Our team at Keltour:
- Follows recognized wiring methods and separation practices.
- Uses ferrules and other termination techniques for secure connections.
- Implements consistent numbering and labelling systems.
- Applies correct colour coding in line with industry and regional standards.
Working with our experienced engineers and technicians ensures that every detail supports the long-term reliability of your system.
Creating a Safer, More Efficient and Reliable Control System with Keltour
The way wires are organized, labelled, and connected inside an industrial control panel makes a big difference in how safe, reliable, and easy to maintain it is.
By implementing proven wiring methods, using ferrules, applying clear numbering and labelling, and following colour coding standards, you create a safer, more efficient, and more reliable control system. These practices are not just best-case recommendations; they are essential to meeting industry standards, passing inspections, and ensuring operational uptime.
For businesses seeking high-quality panel design and assembly, attention to these details can make the difference between a system that performs for decades and one that suffers from recurring faults. By making wiring quality a priority, you protect your investment, safeguard your workforce, and maximize productivity.
